Customized Indoor and Outdoor PVC Conduit 25mm Fitting Plastic Pipe Covering
Shingfong offers a complete line of rigid PVC Conduit, pliable conduit and fittings. Their application is especially recommended in buildings with high concentrations of people or assets, such as residential buildings, offices, hospitals, schools and hotels. Shingfong PVC conduit and duct is proven durable and effective for years of maintenance-free performance in underground, encased and exposed applications.
PVC Conduit Description
| Material | Rigid PVC. |
| Work Temperature | Can be operated between a temperature range of -40° C to 65° C. |

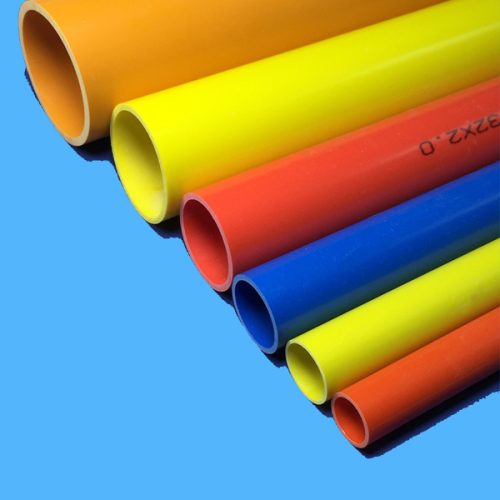

| Available Color | * Regular color: white, grey, red, orange, blue, yellow;
* Customized color is available; |
| Size | Comes in 7 sizes, from min. 10mm to max. 50mm; |
| Usage | For versatile use as insulating protection for concealed cabling or surface installations. |
| Feature | • Quick, easy installation, labor saving, and reduced total job time.
• Corrosion proof, typically not affected by corrosive soils or salts. • Non-Magnetic and Non-Galvanic • non conductive and non-sparking. • Fire Resistant • Reliable joint & Easy Pull Through • Tough, durable, with high tensile strength, yet easy to handle and install right on the job site |
PARAMETER OF PVC CONDUIT PIPE
| Diameter | Thickness | PCS/PKG |
| Ф10 | 1.00 mm | 50 |
| Ф16 | 1.00 mm | 30 |
| Ф20 | 1.00 mm | 25 |
| Ф25 | 1.00 mm | 20 |
| Ф32 | 1.00 mm | 10 |
| Ф40 | 1.00 mm | 10 |
| Ф50 | 1.00 mm | 25 |
Remarks: With different dimensions available
PVC Conduit Usage
- Wiring installation
- Public area cable layout
- Security and protection system
- Indoor cabling
- Underground cabling
PVC Conduit Features:
- Insulation, PVC is not conductive so that our products can prevent accidental electrocution
- Fire-proof, our products will be extinguished as soon as the moment it left flame
- Moisture-proof, Acid-proof alkali, they can store well under ground.
- Take precautions against some insect pests and mice, the reason is Shingfong brand products has the unique auxiliaries, so that it will not happen that insects enjoy their smell.
- Anti-aging: Advanced formulation and process, no need to worry about their discoloration and aging.
Packaging Details:
- packing in bundled, with the white plastic print bag..
Delivery Detail:
- make delivery within 7-10days after you placed order.,
Service:
- OEM and ODM orders welcome
Types:
- PVC straight pipe, PVC cold bend pipe and anti-compact PVC pipes

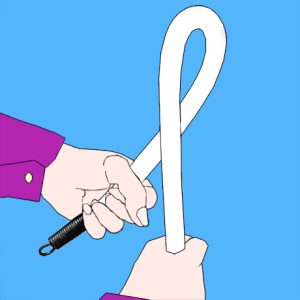

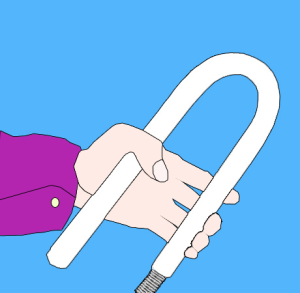

Bending Method:

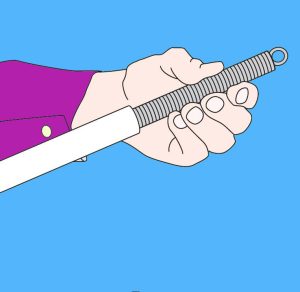

1) Choose a spring fit with the size of PVC Pipe.

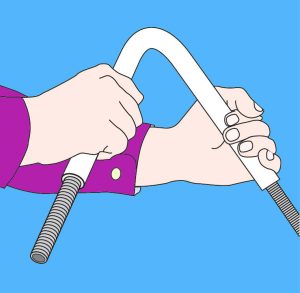

2) Curve the pipe after inserting spring at the place of pipe where you need it be bent.
Effect: PVC pipe can be bent from 5 ° to 180 ° without broken.
Advantage: Client can bend the pipe at the corner without using elbow.

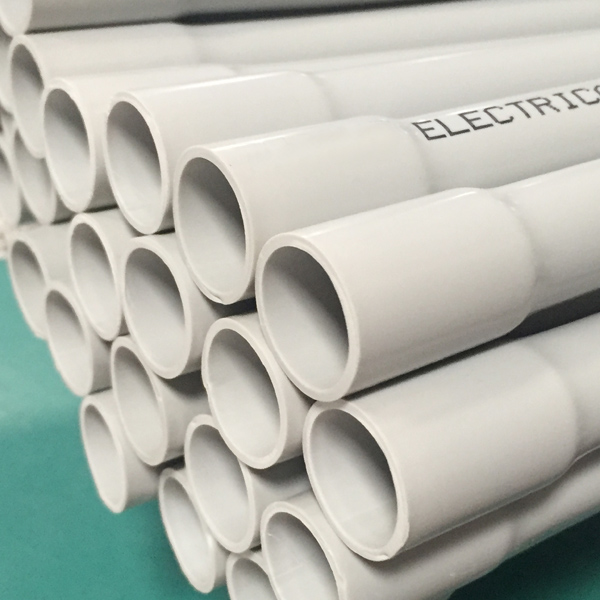

PVC CONDUIT PIPE With one end Socket
Automatic Flaring Machine for PVC Pipe
Quality Guarantee:
Strictly quality control before leave factory
Shingfong Advantage:
- 30 atuomatic production lines.
- 30 years experience on manufacturing and R&D of PVC Trunking & Conduit.
- Annual production capacity is 30,000 tons.
- Annual sales volume more than $20 millions.
- GB/T19001-2008 / ISO9001:2015 certified.
